RXF78減速機詳細信息

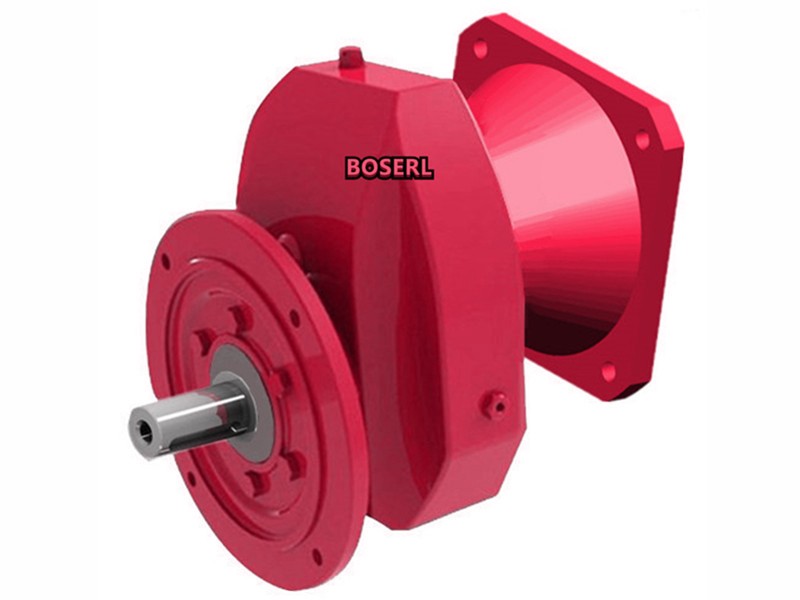

RXF78減速機
訂購熱線：13360667204
RXF78減速機傳動比計算：齒輪減速馬達
輸送設備參數：齒輪直徑155，輸送4.9噸，每分鐘移動37米
37米÷（0.155齒輪直徑X3.14）=76轉每分鐘
4.9噸換算成N=49000N
49000×0.0775齒輪半徑×0.06摩擦系數=227.85N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍227.85×2=455.7N.m
電機轉數1400÷輸出轉數76=18.42比
455.7N.m輸出扭矩÷18.42比=24.74N.m電機扭矩
24.74N.m電機扭矩?fù)Q算成功率3.92KW以上
對應的RXF78減速機選型參數：
型號：RXF78-BVPEJ4KW
減速比：18.42
輸出轉數：76轉每分鐘
輸出扭矩：470N.m
安全系數：2.20

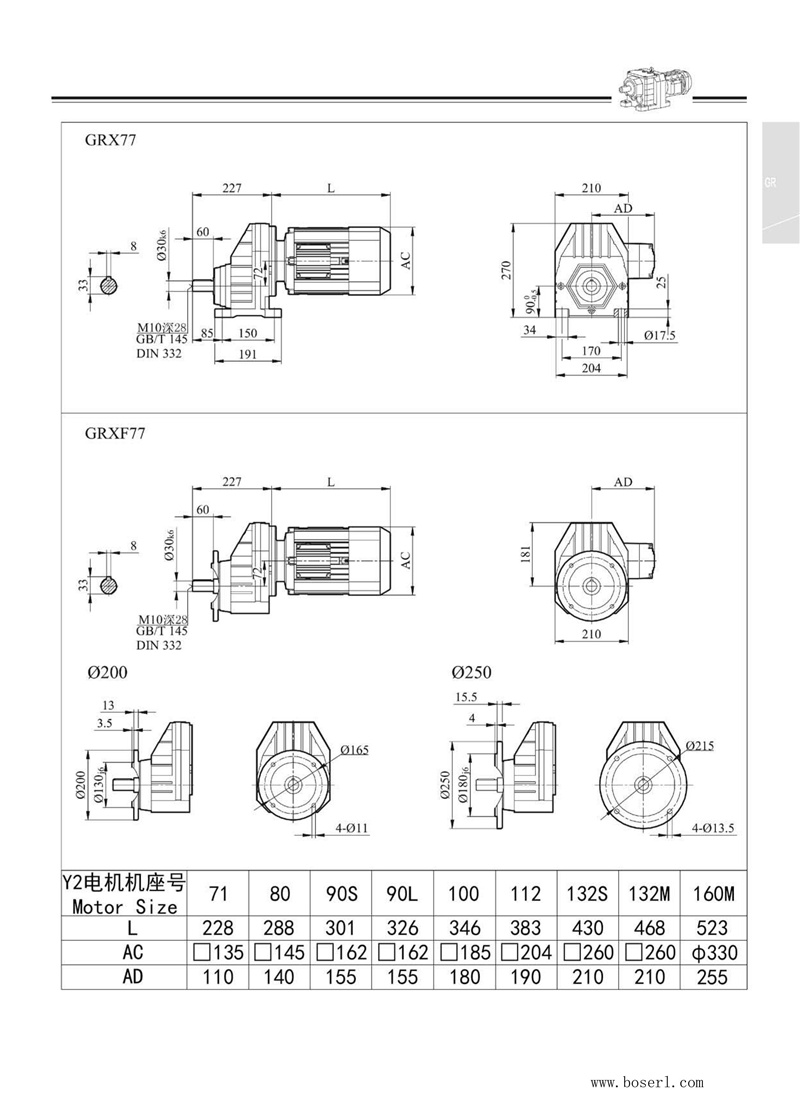

RXF78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）三相齒輪減速機

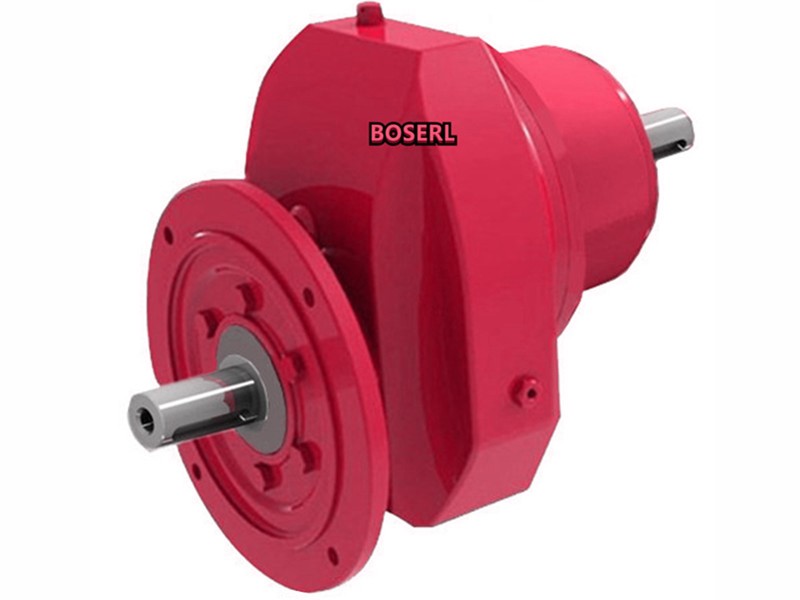

RXF78硬齒面斜齒輪減速機型號：
RXF77系列減速機選型參數：同軸斜齒輪減速電機
RXF77減速機配0.18KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y0.18KW | 0.18KW | 6.8rpm | 250N.m | 3.2 |
| RXF77-Y0.18KW | 0.18KW | 7.9rpm | 215N.m | 3.8 |
| RXF77-Y0.18KW | 0.18KW | 9.1rpm | 190N.m | 4.3 |
| RXF77-Y0.18KW | 0.18KW | 9.5rpm | 180N.m | 4.6 |
RXF77減速機配0.25KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y0.25KW | 0.25KW | 6.7rpm | 355N.m | 2.3 |
| RXF77-Y0.25KW | 0.25KW | 7.8rpm | 305N.m | 2.7 |
| RXF77-Y0.25KW | 0.25KW | 8.9rpm | 265N.m | 3.1 |
| RXF77-Y0.25KW | 0.25KW | 9.4rpm | 250N.m | 3.2 |
| RXF77-Y0.25KW | 0.25KW | 11rpm | 220N.m | 3.7 |
RXF77減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y0.37KW | 0.37KW | 7.1rpm | 495N.m | 1.65 |
| RXF77-Y0.37KW | 0.37KW | 8.3rpm | 425N.m | 1.90 |
| RXF77-Y0.37KW | 0.37KW | 9.5rpm | 370N.m | 2.20 |
| RXF77-Y0.37KW | 0.37KW | 10rpm | 350N.m | 2.30 |
| RXF77-Y0.37KW | 0.37KW | 11rpm | 310N.m | 2.60 |
| RXF77-Y0.37KW | 0.37KW | 13rpm | 260N.m | 3.10 |
| RXF77-Y0.37KW | 0.37KW | 15rpm | 235N.m | 3.40 |
RXF77減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y0.55KW | 0.55KW | 8.30rpm | 630N.m | 1.30 |
| RXF77-Y0.55KW | 0.55KW | 9.50rpm | 550N.m | 1.50 |
| RXF77-Y0.55KW | 0.55KW | 10.0rpm | 525N.m | 1.55 |
| RXF77-Y0.55KW | 0.55KW | 11.0rpm | 460N.m | 1.75 |
| RXF77-Y0.55KW | 0.55KW | 13.0rpm | 390N.m | 2.10 |
| RXF77-Y0.55KW | 0.55KW | 15.0rpm | 350N.m | 2.30 |
| RXF77-Y0.55KW | 0.55KW | 17.0rpm | 310N.m | 2.60 |
| RXF77-Y0.55KW | 0.55KW | 18.0rpm | 290N.m | 2.80 |
| RXF77-Y0.55KW | 0.55KW | 21.0rpm | 250N.m | 3.30 |
RXF77減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y0.75KW | 0.75KW | 8.60rpm | 830N.m | 1.00 |
| RXF77-Y0.75KW | 0.75KW | 9.80rpm | 725N.m | 1.15 |
| RXF77-Y0.75KW | 0.75KW | 10.0rpm | 690N.m | 1.20 |
| RXF77-Y0.75KW | 0.75KW | 12.0rpm | 605N.m | 1.35 |
| RXF77-Y0.75KW | 0.75KW | 14.0rpm | 510N.m | 1.60 |
| RXF77-Y0.75KW | 0.75KW | 15.0rpm | 460N.m | 1.75 |
| RXF77-Y0.75KW | 0.75KW | 18.0rpm | 405N.m | 2.00 |
| RXF77-Y0.75KW | 0.75KW | 19.0rpm | 385N.m | 2.10 |
| RXF77-Y0.75KW | 0.75KW | 22.0rpm | 325N.m | 2.50 |
| RXF77-Y0.75KW | 0.75KW | 25.0rpm | 285N.m | 2.80 |
| RXF77-Y0.75KW | 0.75KW | 28.0rpm | 255N.m | 3.20 |
| RXF77-Y0.75KW | 0.75KW | 31.0rpm | 225N.m | 3.60 |
| RXF77-Y0.75KW | 0.75KW | 33.0rpm | 215N.m | 3.80 |
RXF77減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y1.1KW | 1.1KW | 12.0rpm | 890N.m | 0.90 |
| RXF77-Y1.1KW | 1.1KW | 14.0rpm | 760N.m | 1.10 |
| RXF77-Y1.1KW | 1.1KW | 15.0rpm | 685N.m | 1.20 |
| RXF77-Y1.1KW | 1.1KW | 17.0rpm | 605N.m | 1.35 |
| RXF77-Y1.1KW | 1.1KW | 18.0rpm | 570N.m | 1.45 |
| RXF77-Y1.1KW | 1.1KW | 22.0rpm | 485N.m | 1.70 |
| RXF77-Y1.1KW | 1.1KW | 25.0rpm | 425N.m | 1.90 |
| RXF77-Y1.1KW | 1.1KW | 27.0rpm | 385N.m | 2.10 |
| RXF77-Y1.1KW | 1.1KW | 31.0rpm | 335N.m | 2.40 |
| RXF77-Y1.1KW | 1.1KW | 33.0rpm | 320N.m | 2.60 |
| RXF77-Y1.1KW | 1.1KW | 39.0rpm | 270N.m | 3.00 |
| RXF77-Y1.1KW | 1.1KW | 42.0rpm | 245N.m | 3.30 |
RXF77減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y1.5KW | 1.5KW | 15rpm | 930N.m | 0.90 |
| RXF77-Y1.5KW | 1.5KW | 17rpm | 810N.m | 1.00 |
| RXF77-Y1.5KW | 1.5KW | 19rpm | 770N.m | 1.05 |
| RXF77-Y1.5KW | 1.5KW | 22rpm | 655N.m | 1.25 |
| RXF77-Y1.5KW | 1.5KW | 25rpm | 575N.m | 1.40 |
| RXF77-Y1.5KW | 1.5KW | 27rpm | 520N.m | 1.55 |
| RXF77-Y1.5KW | 1.5KW | 31rpm | 455N.m | 1.80 |
| RXF77-Y1.5KW | 1.5KW | 33rpm | 430N.m | 1.90 |
| RXF77-Y1.5KW | 1.5KW | 39rpm | 365N.m | 2.20 |
| RXF77-Y1.5KW | 1.5KW | 43rpm | 335N.m | 2.40 |
| RXF77-Y1.5KW | 1.5KW | 49rpm | 290N.m | 2.80 |
| RXF77-Y1.5KW | 1.5KW | 57rpm | 250N.m | 3.10 |
| RXF77-Y1.5KW | 1.5KW | 61rpm | 230N.m | 3.50 |
| RXF77-Y1.5KW | 1.5KW | 67rpm | 210N.m | 3.80 |
| RXF77-Y1.5KW | 1.5KW | 76rpm | 188N.m | 4.10 |
RXF77減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y2.2KW | 2.2KW | 22rpm | 960N.m | 0.85 |
| RXF77-Y2.2KW | 2.2KW | 25rpm | 850N.m | 0.95 |
| RXF77-Y2.2KW | 2.2KW | 27rpm | 765N.m | 1.05 |
| RXF77-Y2.2KW | 2.2KW | 31rpm | 675N.m | 1.2 |
| RXF77-Y2.2KW | 2.2KW | 33rpm | 635N.m | 1.3 |
| RXF77-Y2.2KW | 2.2KW | 39rpm | 540N.m | 1.5 |
| RXF77-Y2.2KW | 2.2KW | 43rpm | 490N.m | 1.65 |
| RXF77-Y2.2KW | 2.2KW | 49rpm | 425N.m | 1.9 |
| RXF77-Y2.2KW | 2.2KW | 56rpm | 370N.m | 2.1 |
| RXF77-Y2.2KW | 2.2KW | 61rpm | 340N.m | 2.4 |
| RXF77-Y2.2KW | 2.2KW | 66rpm | 315N.m | 2.6 |
| RXF77-Y2.2KW | 2.2KW | 76rpm | 275N.m | 2.8 |
| RXF77-Y2.2KW | 2.2KW | 80rpm | 260N.m | 3 |
| RXF77-Y2.2KW | 2.2KW | 91rpm | 225N.m | 3.2 |
| RXF77-Y2.2KW | 2.2KW | 101rpm | 205N.m | 3.5 |
RXF77減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y3KW | 3KW | 32rpm | 900N.m | 0.90 |
| RXF77-Y3KW | 3KW | 34rpm | 850N.m | 0.95 |
| RXF77-Y3KW | 3KW | 40rpm | 725N.m | 1.15 |
| RXF77-Y3KW | 3KW | 43rpm | 655N.m | 1.25 |
| RXF77-Y3KW | 3KW | 50rpm | 570N.m | 1.45 |
| RXF77-Y3KW | 3KW | 58rpm | 495N.m | 1.55 |
| RXF77-Y3KW | 3KW | 62rpm | 460N.m | 1.80 |
| RXF77-Y3KW | 3KW | 68rpm | 420N.m | 1.95 |
| RXF77-Y3KW | 3KW | 77rpm | 370N.m | 2.10 |
| RXF77-Y3KW | 3KW | 82rpm | 350N.m | 2.20 |
| RXF77-Y3KW | 3KW | 93rpm | 305N.m | 2.40 |
| RXF77-Y3KW | 3KW | 104rpm | 275N.m | 2.60 |
| RXF77-Y3KW | 3KW | 118rpm | 240N.m | 2.80 |
| RXF77-Y3KW | 3KW | 134rpm | 210N.m | 3.10 |
| RXF77-Y3KW | 3KW | 151rpm | 190N.m | 3.30 |
| RXF77-Y3KW | 3KW | 169rpm | 169N.m | 3.70 |
| RXF77-Y3KW | 3KW | 188rpm | 152N.m | 4.00 |
| RXF77-Y3KW | 3KW | 214rpm | 134N.m | 4.30 |
RXF77減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y4KW | 4KW | 40rpm | 960N.m | 0.85 |
| RXF77-Y4KW | 4KW | 44rpm | 870N.m | 0.95 |
| RXF77-Y4KW | 4KW | 50rpm | 755N.m | 1.1 |
| RXF77-Y4KW | 4KW | 58rpm | 660N.m | 1.2 |
| RXF77-Y4KW | 4KW | 62rpm | 610N.m | 1.35 |
| RXF77-Y4KW | 4KW | 68rpm | 560N.m | 1.45 |
| RXF77-Y4KW | 4KW | 78rpm | 490N.m | 1.6 |
| RXF77-Y4KW | 4KW | 82rpm | 465N.m | 1.65 |
| RXF77-Y4KW | 4KW | 94rpm | 405N.m | 1.80 |
| RXF77-Y4KW | 4KW | 104rpm | 365N.m | 1.95 |
| RXF77-Y4KW | 4KW | 118rpm | 320N.m | 2.10 |
| RXF77-Y4KW | 4KW | 134rpm | 280N.m | 2.30 |
| RXF77-Y4KW | 4KW | 151rpm | 250N.m | 2.50 |
| RXF77-Y4KW | 4KW | 170rpm | 220N.m | 2.80 |
| RXF77-Y4KW | 4KW | 189rpm | 200N.m | 3.00 |
| RXF77-Y4KW | 4KW | 215rpm | 178N.m | 3.30 |
| RXF77-Y4KW | 4KW | 244rpm | 157N.m | 3.40 |
| RXF77-Y4KW | 4KW | 275rpm | 139N.m | 3.70 |
RXF77減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y5.5KW | 5.5KW | 77rpm | 675N.m | 1.15 |
| RXF77-Y5.5KW | 5.5KW | 82rpm | 640N.m | 1.20 |
| RXF77-Y5.5KW | 5.5KW | 93rpm | 560N.m | 1.30 |
| RXF77-Y5.5KW | 5.5KW | 104rpm | 505N.m | 1.40 |
| RXF77-Y5.5KW | 5.5KW | 118rpm | 440N.m | 1.55 |
| RXF77-Y5.5KW | 5.5KW | 134rpm | 390N.m | 1.70 |
| RXF77-Y5.5KW | 5.5KW | 151rpm | 345N.m | 1.80 |
| RXF77-Y5.5KW | 5.5KW | 169rpm | 310N.m | 2.00 |
| RXF77-Y5.5KW | 5.5KW | 188rpm | 275N.m | 2.20 |
| RXF77-Y5.5KW | 5.5KW | 214rpm | 245N.m | 2.40 |
| RXF77-Y5.5KW | 5.5KW | 243rpm | 215N.m | 2.50 |
| RXF77-Y5.5KW | 5.5KW | 274rpm | 192N.m | 2.70 |
RXF77減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y7.5KW | 7.5KW | 78rpm | 910N.m | 0.85 |
| RXF77-Y7.5KW | 7.5KW | 82rpm | 860N.m | 0.90 |
| RXF77-Y7.5KW | 7.5KW | 94rpm | 755N.m | 0.95 |
| RXF77-Y7.5KW | 7.5KW | 105rpm | 680N.m | 1.05 |
| RXF77-Y7.5KW | 7.5KW | 119rpm | 600N.m | 1.15 |
| RXF77-Y7.5KW | 7.5KW | 135rpm | 525N.m | 1.25 |
| RXF77-Y7.5KW | 7.5KW | 152rpm | 465N.m | 1.35 |
| RXF77-Y7.5KW | 7.5KW | 171rpm | 415N.m | 1.50 |
| RXF77-Y7.5KW | 7.5KW | 190rpm | 375N.m | 1.60 |
| RXF77-Y7.5KW | 7.5KW | 216rpm | 330N.m | 1.75 |
| RXF77-Y7.5KW | 7.5KW | 245rpm | 290N.m | 1.85 |
| RXF77-Y7.5KW | 7.5KW | 277rpm | 255N.m | 1.95 |
RXF77減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| RXF77-Y11KW | 11KW | 136rpm | 770N.m | 0.85 |
| RXF77-Y11KW | 11KW | 153rpm | 685N.m | 0.90 |
| RXF77-Y11KW | 11KW | 191rpm | 550N.m | 1.10 |
| RXF77-Y11KW | 11KW | 217rpm | 480N.m | 1.20 |
| RXF77-Y11KW | 11KW | 246rpm | 425N.m | 1.25 |
| RXF77-Y11KW | 11KW | 278rpm | 375N.m | 1.35 |
RXF77減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R78減速機
關鍵詞:GRXF向減速電機一體式_硬齒面減速機配電機_RXF系列減速器_RXF系列減速機_GRXF系列減速機_齒輪減速器_硬齒面齒輪減速機_三相齒輪減速電機_RXF型減速機_三相齒輪減速機
RXF系列齒輪減速馬達型號：RXF58減速機,RXF68減速機,RXF78減速機,RXF88減速機,RXF98減速機,RXF108減速機
RXF系列同軸斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
