R28減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑60，負載1噸，一分鐘走45米

45米÷（0.06輪子直徑×3.14）=223.3轉每分鐘

1噸換算成N=10000N

10000×0.03輪子半徑×0.06摩擦系數=18N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍18×2=36N.m

電機轉數1400÷輸出轉數223.3=6.2比

36N.m輸出扭矩÷6.2比=5.8N.m電機扭矩

5.8N.m電機扭矩?fù)Q算成功率1.1KW以上

對應的R28減速機選型參數：

型號：R28-B1.1KW

減速比：6.59

輸出轉數：215轉每分鐘

輸出扭矩：49N.m

安全系數：2.20

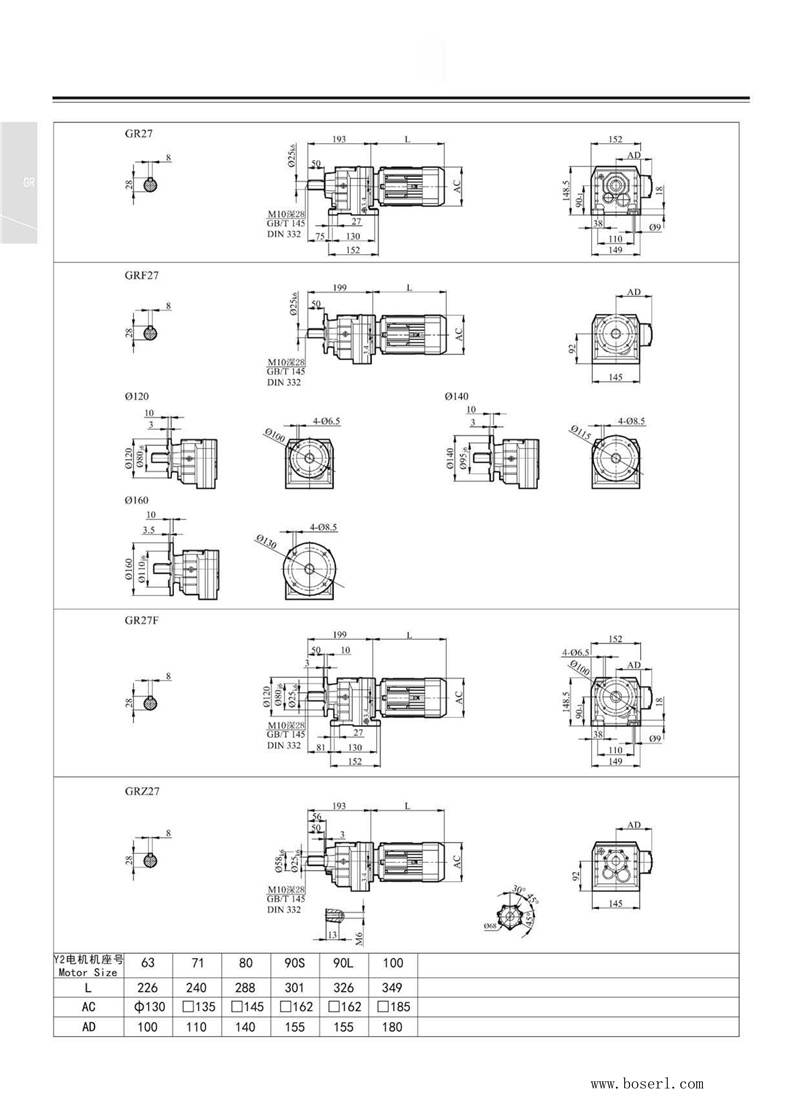

R28減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

R28臥式硬齒面斜齒輪減速機型號：R27FDM100L4R27FDM100LC4R27FDM100LS4R27FDM100M4R27FDM63L4R27FDM63M4R27FDM63MS4R27FDM63S4R27FDM71D4R27FDM71M4R27FDM71MS4R27FDM71S4R27FDM80K4R27FDM80M4R27FDM80MK4R27FDM80N4R27FDM80S4R27FDM90L4R27FDM90M4R27FDM90S4R27FDR100L4R27FDR100LC4R27FDR100LS4R27FDR100M4R27FDR63L4R27FDR63M4R27FDR63MS4R27FDR63S4R27FDR71D4R27FDR71M4R27FDR71MS4R27FDR71S4R27FDR80K4R27FDR80M4R27FDR80MK4R27FDR80N4R27FDR80S4R27FDR90L4R27FDR90M4R27FDR90S4R27FDRE100L4R27FDRE100LC4R27FDRE100LS4R27FDRE100M4R27FDRE63L4R27FDRE63M4R27FDRE63MS4R27FDRE63S4R27FDRE71D4R27FDRE71M4R27FDRE71MS4R27FDRE71S4R27FDRE80K4R27FDRE80M4R27FDRE80MK4R27FDRE80N4R27FDRE80S4R27FDRE90L4R27FDRE90M4R27FDRE90S4R27FDRN100L4R27FDRN100LC4R27FDRN100LS4R27FDRN100M4R27FDRN63L4R27FDRN63M4R27FDRN63MS4R27FDRN63S4R27FDRN71D4R27FDRN71M4R27FDRN71MS4R27FDRN71S4R27FDRN80K4R27FDRN80M4R27FDRN80MK4R27FDRN80N4R27FDRN80S4R27FDRN90L4R27FDRN90M4R27FDRN90S4R27FDRS100L4R27FDRS100LC4R27FDRS100LS4R27FDRS100M4R27FDRS63L4R27FDRS63M4R27FDRS63MS4R27FDRS63S4R27FDRS71D4R27FDRS71M4R27FDRS71MS4R27FDRS71S4R27FDRS80K4R27FDRS80M4R27FDRS80MK4R27FDRS80N4R27FDRS80S4R27FDRS90L4R27FDRS90M4R27FDRS90S4R27FDT100L4R27FDT100LC4R27FDT100LS4R27FDT100M4R27FDT63L4R27FDT63M4R27FDT63MS4R27FDT63S4R27FDT71D4R27FDT71M4R27FDT71MS4R27FDT71S4R27FDT80K4R27FDT80M4R27FDT80MK4R27FDT80N4R27FDT80S4R27FDT90L4R27FDT90M4R27FDT90S4R27FDV100L4R27FDV100LC4R27FDV100LS4R27FDV100M4R27FDV63L4R27FDV63M4R27FDV63MS4R27FDV63S4R27FDV71D4R27FDV71M4R27FDV71MS4R27FDV71S4R27FDV80K4R27FDV80M4R27FDV80MK4R27FDV80N4R27FDV80S4R27FDV90L4R27FDV90M4R27FDV90S4R27FDVE100L4R27FDVE100LC4R27FDVE100LS4R27FDVE100M4R27FDVE63L4R27FDVE63M4R27FDVE63MS4R27FDVE63S4R27FDVE71D4R27FDVE71M4R27FDVE71MS4R27FDVE71S4R27FDVE80K4R27FDVE80M4R27FDVE80MK4R27FDVE80N4R27FDVE80S4R27FDVE90L4R27FDVE90M4R27FDVE90S4R27F-Y0.12KWR27F-Y0.18KWR27F-Y0.25KWR27F-Y0.37KWR27F-Y0.55KWR27F-Y0.75KWR27F-Y1.1KWR27F-Y1.5KWR27F-Y100M4R27F-Y2.2KWR27F-Y3KWR27F-Y63M4R27F-Y71M4R27F-Y80M4R27F-Y90M4R27F-YEJ0.12KWR27F-YEJ0.18KWR27F-YEJ0.25KWR27F-YEJ0.37KWR27F-YEJ0.55KWR27F-YEJ0.75KWR27F-YEJ1.1KWR27F-YEJ1.5KWR27F-YEJ100M4R27F-YEJ2.2KWR27F-YEJ3KWR27F-YEJ63M4R27F-YEJ71M4R27F-YEJ80M4R27F-YEJ90M4R27F-YVP0.12KWR27F-YVP0.18KWR27F-YVP0.25KWR27F-YVP0.37KWR27F-YVP0.55KWR27F-YVP0.75KWR27F-YVP1.1KWR27F-YVP1.5KWR27F-YVP100M4R27F-YVP2.2KWR27F-YVP3KWR27F-YVP63M4R27F-YVP71M4R27F-YVP80M4R27F-YVP90M4R27F-YVPEJ0.12KWR27F-YVPEJ0.18KWR27F-YVPEJ0.25KWR27F-YVPEJ0.37KWR27F-YVPEJ0.55KWR27F-YVPEJ0.75KWR27F-YVPEJ1.1KWR27F-YVPEJ1.5KWR27F-YVPEJ100M4R27F-YVPEJ2.2KWR27F-YVPEJ3KWR27F-YVPEJ63M4R27F-YVPEJ71M4R27F-YVPEJ80M4R27F-YVPEJ90M4。

R27系列減速機參數大全：同軸斜齒輪減速電機

R27F減速機配0.12KW電機參數

R27F減速機配0.18KW電機參數

R27F減速機配0.25KW電機參數

R27F減速機配0.37KW電機參數

R27F減速機配0.55KW電機參數

R27F減速機配0.75KW電機參數

R27F減速機配1.1KW電機參數

R27F減速機配1.5KW電機參數

R27F減速機配2.2KW電機參數

R27F減速機配3KW電機參數

R28減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
